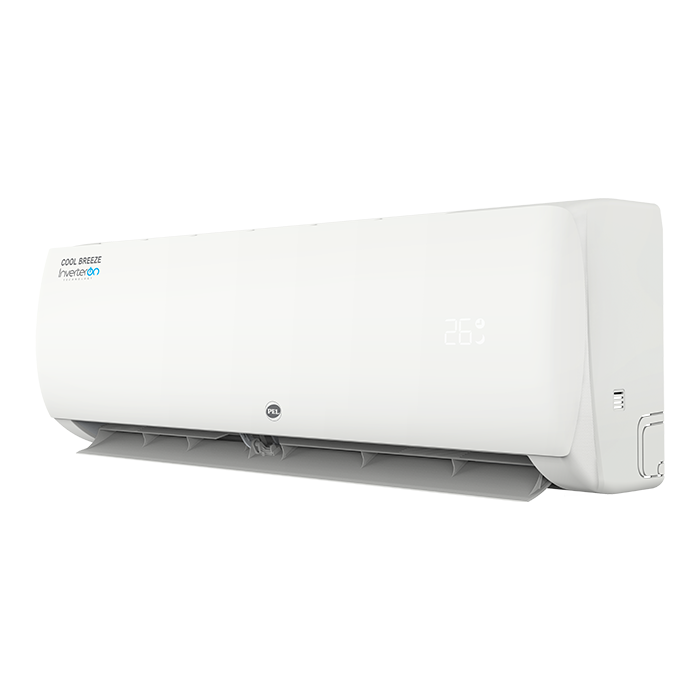

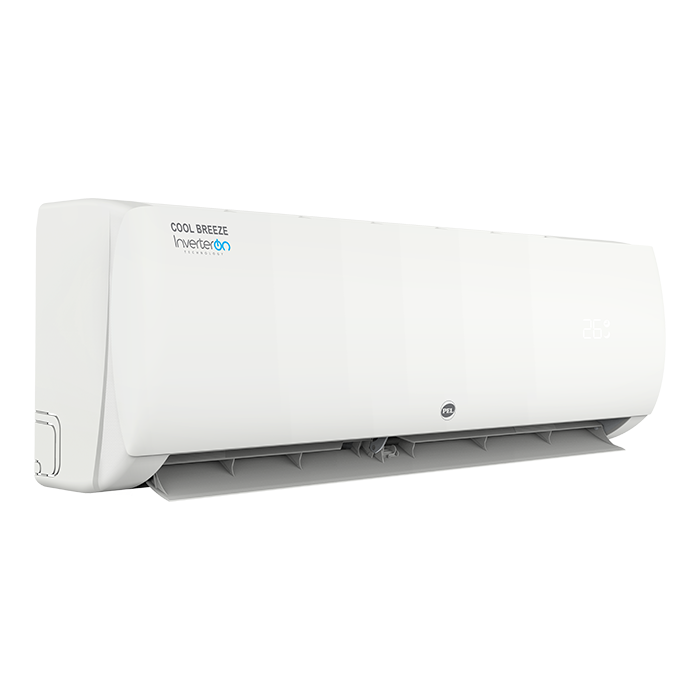

PEL InverterOn Cool Breeze Air Conditioner (Cool Only)
Size:1 Ton
-
This advanced technology feature guarantees optimum performance and high energy savings. -
Outstanding Efficiency & Electricity Savings. -
Minimal start-up voltage at 165 Volts -
Flexible energy consumption
| SPECIFICATION | 12K Cool Breeze |
|---|---|
| Rated Capacity - Cooling | 3517 W |
| Rated Running Current - Cooling | 6.5 A |
| Maximum Current | 7.0 A |
| Max Power Input | 1500 W |
| Energy Efficiency Ratio (EER) | 2.80 |
| Power supply source | 220_240V_1Ph,FREQUENCY_50HZ |
| Refrigerant | R32 |
| Air Flow Volume | 450 m3/h |
| Outdoor Noise level | 52 dB(A) |
| Indoor unit weight （Net ) | 7.5 Kg |
| Outdoor unit weight (Net ) | 20 Kg |
| Net Dimension - Indoor (WidthxDepthxHeight) | 777x250x201 mm |
| Net Dimension - Outdoor (WidthxDepthxHeight) | 712x276x459 mm |
Split AC installation Cost:
| Description (Wall Mounted Split AC 1-2 Ton) | Tariff (PKR) |
|---|---|
| PEL Technician Installation | 4000 |
| Dismantling Charges in case of previous AC | 2000 |
| Extra Copper Pipe (RFT) | 750 |
| PVC Drain Pipe (RFT) | 100 |
| Simple Grooving without Pipe Concealing (RFT) | 150 |
| Iron Frame Charges (Powder Coated) | 2000 |
| Filling of Holes with white Plaster of Paris (RFT) | 200 |
| PVC Duct for Refrigeration pipe (RFT) | 400 |
| Additional Gas Charging (if required) **In case of more than 10ft outdoor height |
(R-22) 350 Per RFT (R410a) 500 Per RFT |
- Compressor Warranty : 10 Years
- PCB Kit Warranty : 5 Years
- Parts Warranty : 1 Year
