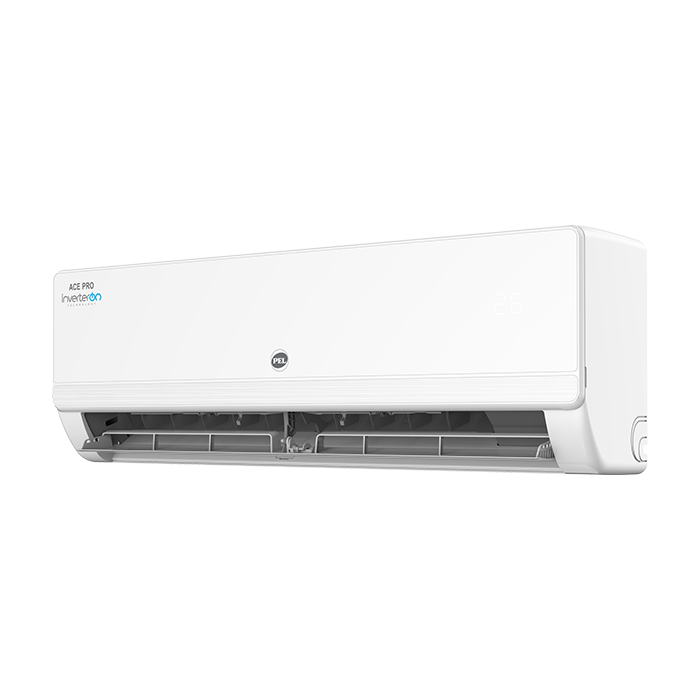

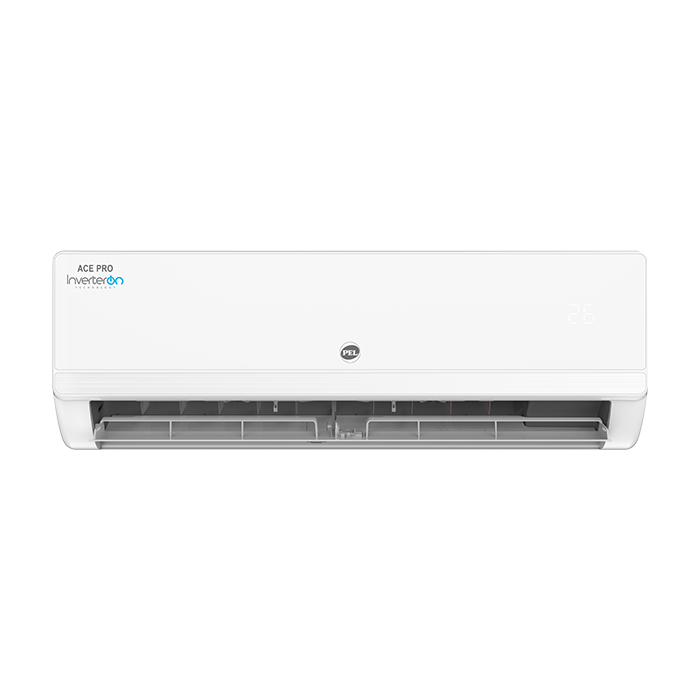

PEL InverterOn ACE Pro (H&C) Air Conditioner

Name: PEL InverterOn ACE Pro (H&C) Air Conditioner
Brand: eshoppel
Price: 113900.0 PKR
Availability: OutOfStock

Rs.134,900.00 PKR

Color:White

Size:1.5 Ton

Variant

Quantity:

This advanced technology feature guarantees optimum performance and high energy savings.
It starts the Air Conditioner even on 155 Volts that gives excellent energy saving experience.
Powerful Cooling upto 50°C Ambient Temperature.
Automatically cleans the AC & Eliminates Moisture.
Flexible Electricity Consumption

SPECIFICATION	12K ACE Pro
Rated Capacity - Cooling	12000 (4400~12500) BTU/h
Rated Current - Cooling	5.39 (1.25~5.63) A
Maximum Current	10.5 A
Rated Capacity - Heating	12000 (3600~13600) BTU/h
Maximum Power Input	2300 W
Energy Efficiency Ratio (EER)	2.84
Power supply source	220-240V~/50Hz/1P
Refrigerant Type	R32 / 530 gram Gas
Indoor Air Flow Volume	520 m3/h
Outdoor Noise level	56 dB (A)
Indoor unit weight （Net )	8.1 kg
Outdoor unit weight (Net )	19.9 kg
Net Dimension - Indoor (WidthxDepthxHeight)	729x200x292 mm
Net Dimension - Outdoor (WidthxDepthxHeight)	720x270x495 mm

PEL AC Installation Extra Material Charges (Effective 16th March, 2026)
S. No	Item	Unit	Rate
1	Wall Mount Bracket with Rawl Bolt (Powder Coated) 1.0 & 1.5 Ton	No	1500
2	Wall Mount Bracket with Rawl Bolt (Powder Coated) 2.0 Ton	No	2000
3	Wall Mount Bracket with Rawl Bolt (Powder Coated) 2.0 & 2.5 Ton Floor Standing	No	2500
4	Wall Mount Bracket with Rawl Bolt (Powder Coated) 4 Ton Floor Standing	No	3500
5	Extra Refrigerant Pipe with Insulation 1.0 Ton	Per Feet	800
6	Extra Refrigerant Pipe with Insulation 1.5 Ton	Per Feet	950
7	Extra Refrigerant Pipe with Insulation 2 Ton Wall Mounted	Per Feet	1000
8	Extra Refrigerant Pipe with Insulation 2 Ton Floor Standing	Per Feet	1300
9	Extra Refrigerant Pipe with Insulation 4.0 Ton	Per Feet	1500
10	Copper Control Wire 110/76 3-Core	Per Feet	200
11	Copper Control Wire 110/76 4-Core	Per Feet	250
12	Flair Nut	No	180
13	Brazing / Welding Charges	Per Unit	600
14	Duct For Refrigerant Pipe with Installation	Per Feet	275
15	Duct For Cable / Drain Pipe (25 x 25mm) Size	Per Feet	100
16	Drain Pipe (PVC) 1" Dia Size with Installation	Per Feet	100
17	Socket (3 Pin Main Power Plug)	No	700
18	Power Plug 3 Pin Switch with Breaker	No	1000 ~ 2000
19	Drain Pipe Flexible with Installation	No	50
20	Flushing & Cleaning of Existing/Old Pipe	Per Feet	100 ~ 150
21	Labor Charges Laying of Extra Copper Pipe	Per Feet	100
22	Extra Gas Charging for Extra Piping	Per Feet	150
23	Additional Hole Charges (Per Inch)	Per Inch	100
24	Re-Installation Charges	Per Unit	2700
25	Old Unit Dismantle Charges	Per Unit	1000
